Binks

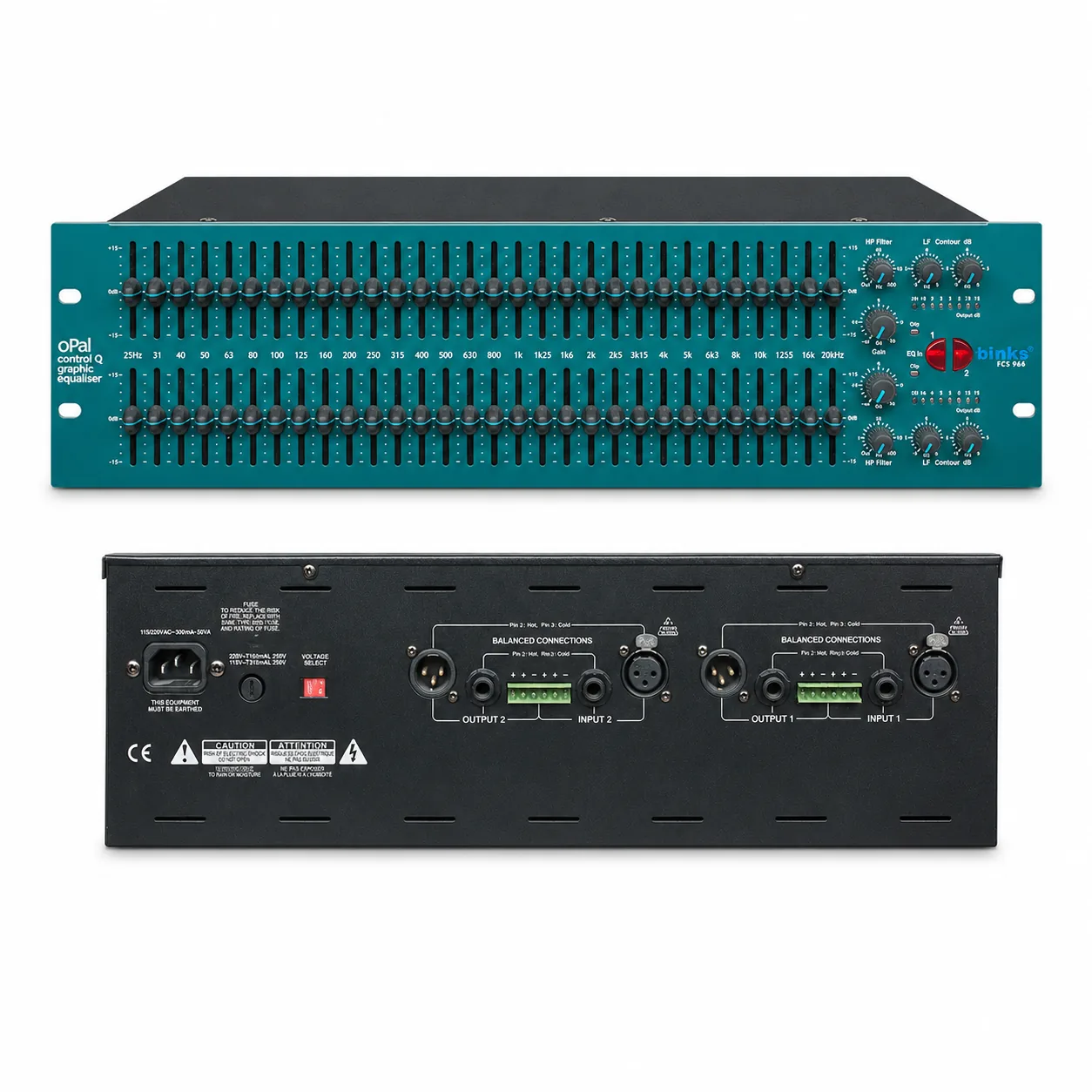

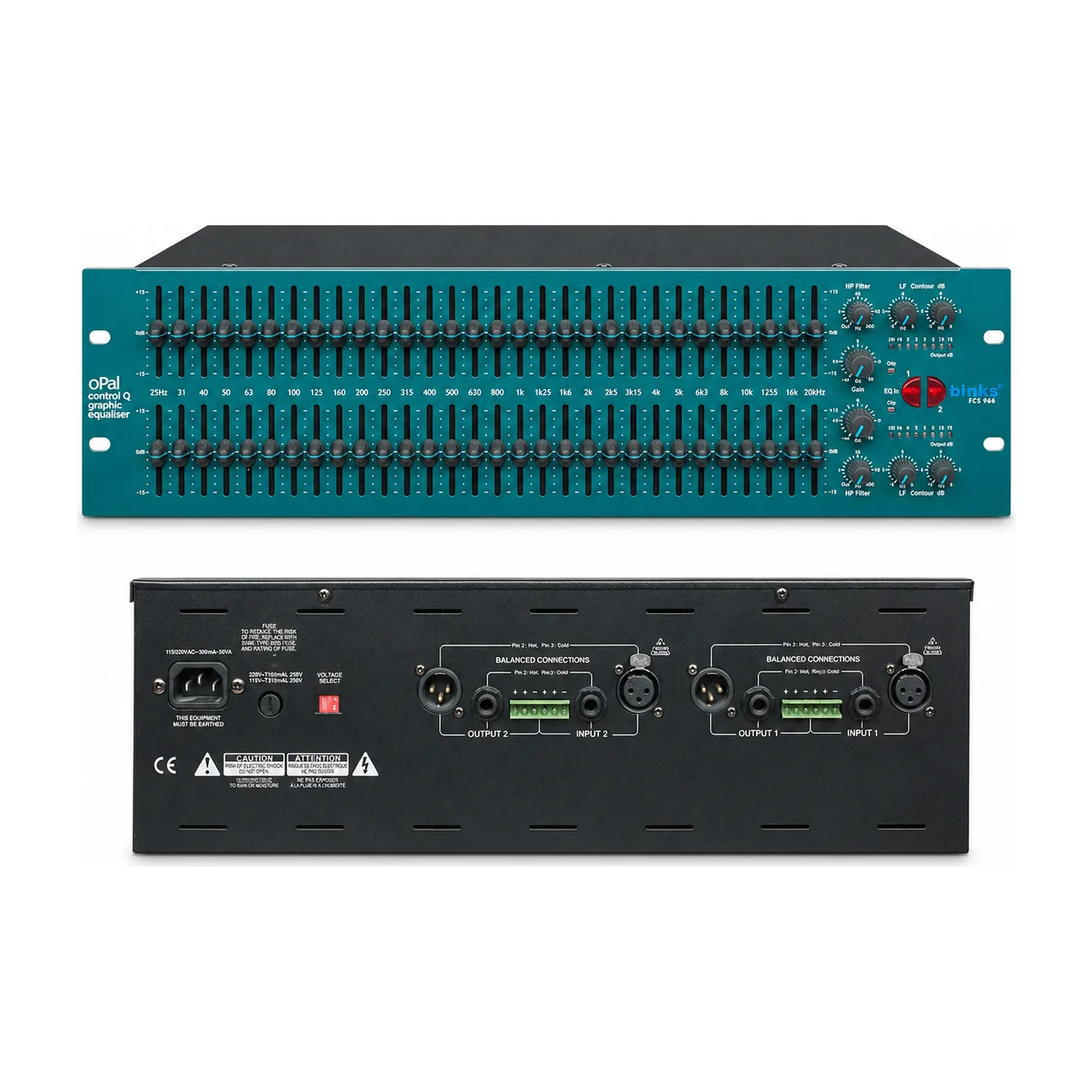

FCS966 Graphic Equalizer
Technical parameters:
Техникийн үзүүлэлт
- Technical parameters:
- Q value of 4; constant gain / attenuation
- 15dB
- Input impedance
- 10kΩ balanced
- Output impedance
- <50kΩ balanced
- CMRR
- >-40dB @ 1KHz
- Maximum input level
- +20 dBu (balanced or unbalanced)
- Maximum output level
- +20 dBu (balanced or unbalanced) 600Ω
- Maximum output level indicator
- -24dB-18dB
- Fader input level control
- + /-15dB
- Gain control per channel
- - ∞ - +10 dB
- Each channel has a clipping indicator
- High-pass filter
- OUT-250 Hz
- Low-frequency control
- + / -6 dB 50 Hz 6 dB / octave
- High-frequency control
- + / -6 dB 14KHz 6 dB / octave
- Total Harmonic Distortion
- 0.005% @ 1kHz 20Hz-20kHz
- SNR
- > 90dB (ref.0.775Vrms)
- Noise
- -94dBu, 22Hz-22KHz
- Crosstalk
- >-80dB @ 1KHz
- Distortion
- <0.005% THD20Hz-20KHz
- Impedance balanced 1/4 "inputs and XLR balanced input / output
- Electronic switch
- ln / Out and Filter (FET category)
- Dynamic range
- > 115dB
- Frequency response
- 20Hz to 20kHz, +0 /-1dB
- Power
- 110V / 230V AC, 50/60Hz, 30VA
- Operating level
- -10dBu to +4 dBu
- Dimensions
- 483mm x 134mm x 180mm
- Weight
- 3kg
