Binks

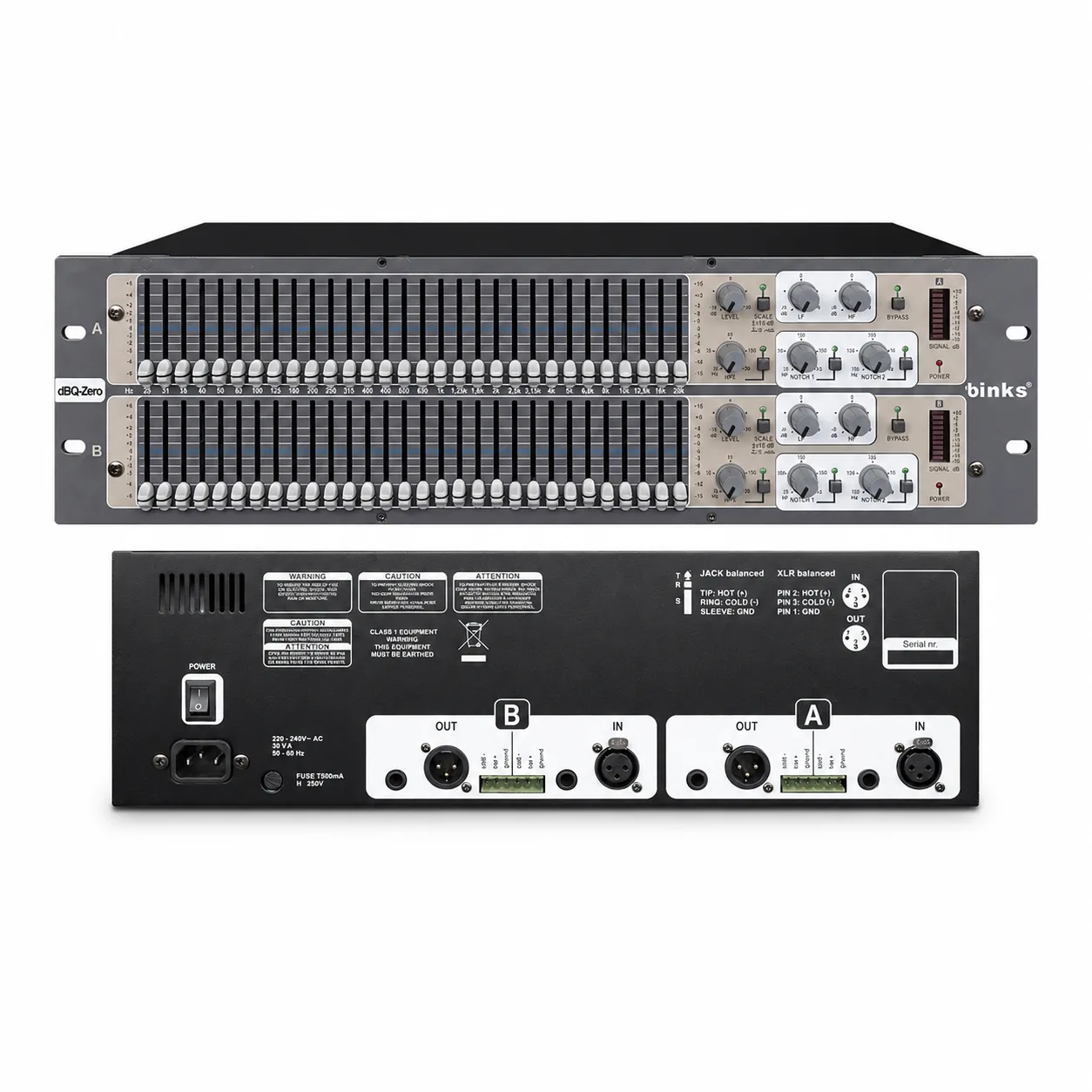

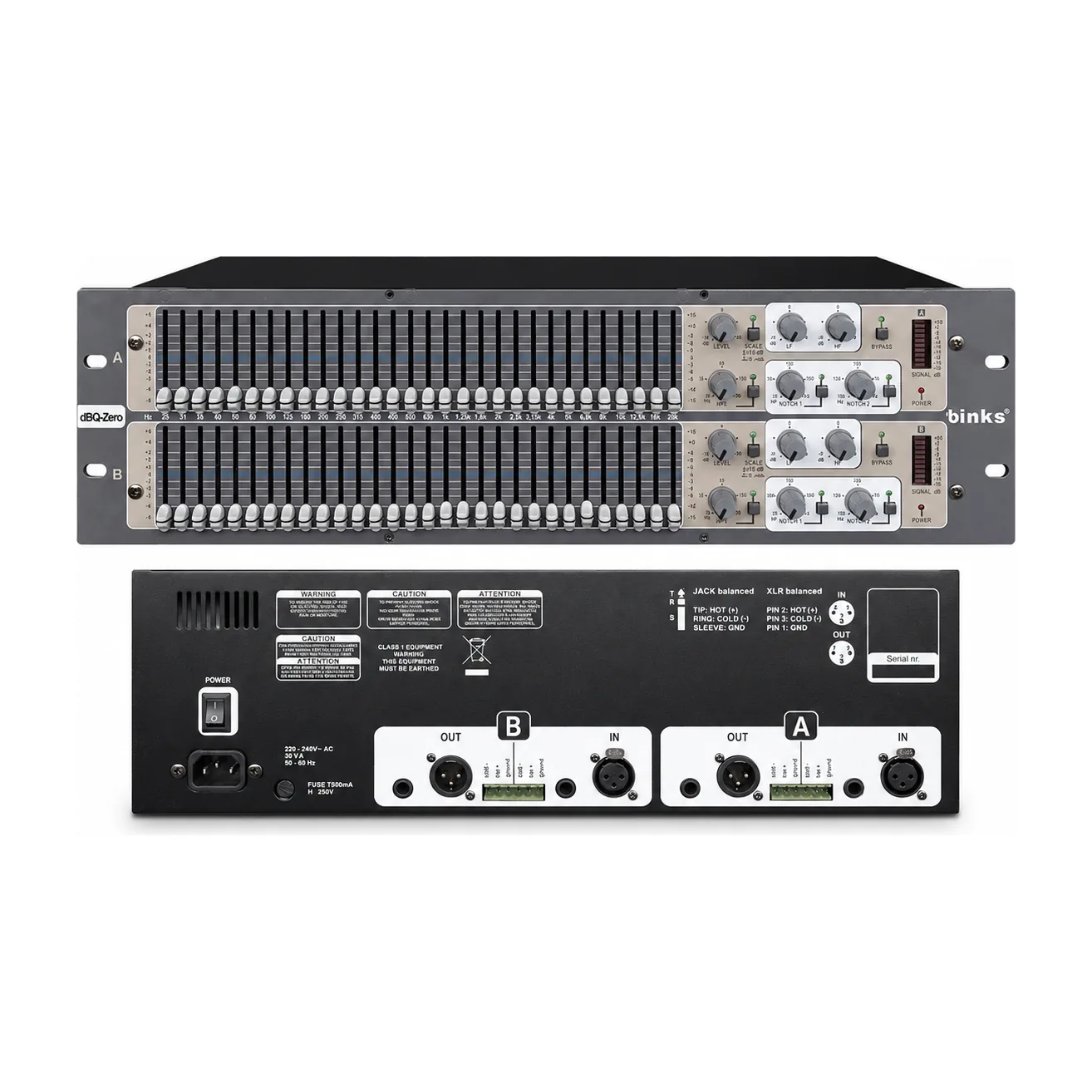

dBQ-Zero Graphic Equalizer
Balanced line level input: 1/4 TRS jack / 3-pin XLR/ Screw terminal
Техникийн үзүүлэлт
- Balanced line level input
- 1/4 TRS jack / 3-pin XLR/ Screw terminal
- Impedance
- >10k ohms, balanced
- Max input level
- +21 dBu balanced, 1% THD+N
- CMRR
- +21 dBu balanced, 1% THD
- Balanced line level output
- 1/4 TRS jack / 3-pin XLR/ Screw terminal
- Impedance
- <50 ohm, balanced
- Max output level
- +21 dBu into 600 ohms, balanced, 1% THD+N
- Audio performance (unity gain, all settings flat):
- Frequency response
- 20Hz–20kHz ±0.5dB
- THD+N
- less than 0.005%, +4dBu, 20Hz–20kHz, 22kHz BW
- Signal to Noise Ratio
- >94dB, net 4dBu, 22khz BW, un-weighted
- Crosstalk
- -75dB, 20Hz–20kHz, +4dBu, channel-to-channel
- Functions:
- Gain control
- ±10dB
- Graphic EQ
- 30 × 45MM faders, switchable boost/ cut ±6dB or ±15dB ISO frequencies, constant-Q
- High pass filter
- 12dB/octave variable 20Hz–250Hz
- HF shelving filter
- ±9dB at 14kHz
- LF shelving filter
- ±9dB at 100Hz
- Top notch filters
- Fixed Q factor of 4, fixed depth of -20db, variable frequency control, first 25Hz-1500Hz, second 700Hz-18Hz
- AC Power Requirements
- Auto-detect 220–240V~50/60Hz
- Power Consumption
- 30VA
