BMB

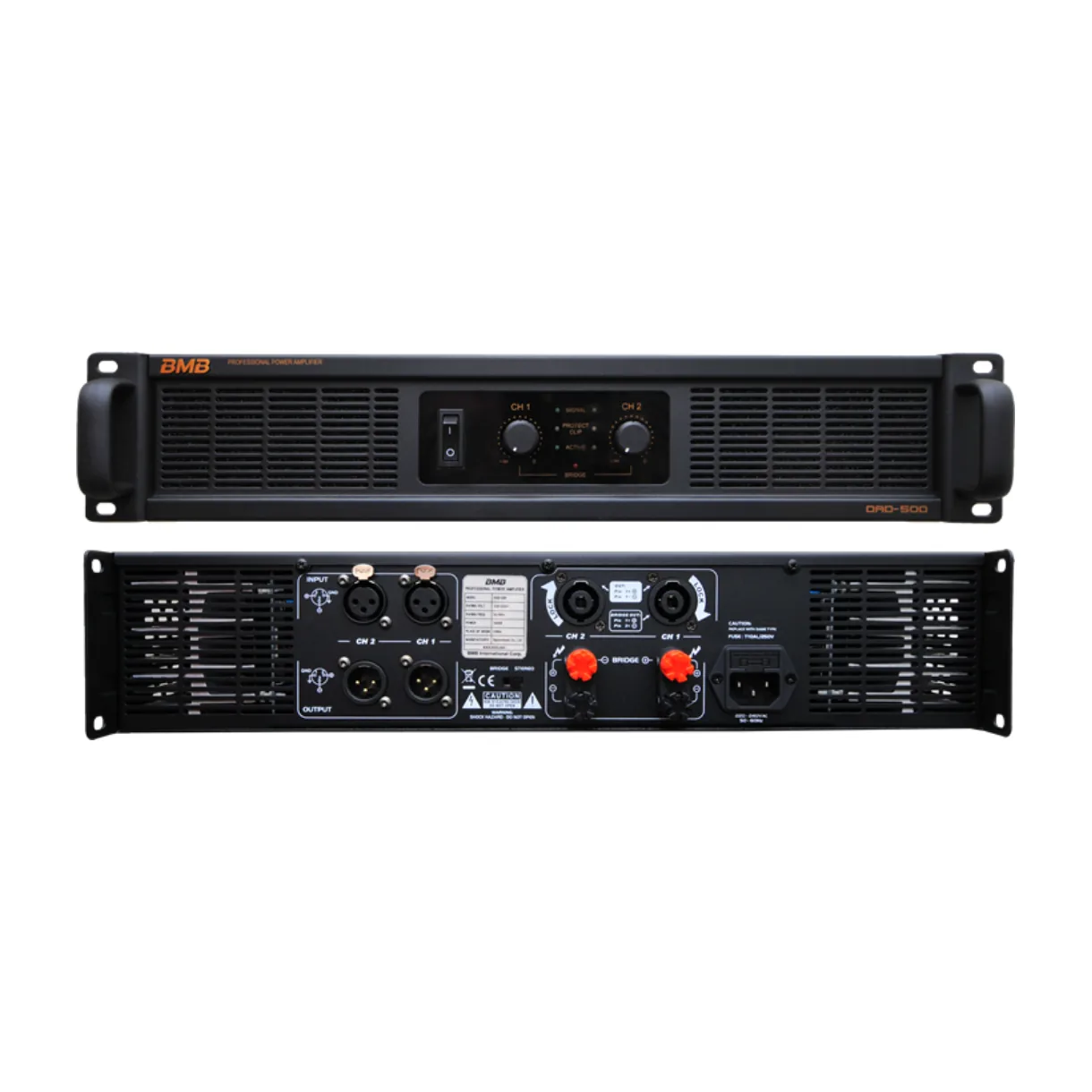

BMB DAD-500 Power Amplifier for PA Speaker
Rating Output Power: 700W×2CH(4Ω), 500W×2CH(8Ω), 1000W×1CH(8Ω)
Техникийн үзүүлэлт
- Rating Output Power
- 700W×2CH(4Ω), 500W×2CH(8Ω), 1000W×1CH(8Ω)
- Frequency Characteristic(20Hz～20kHz、8Ω)
- ±0.3dB
- THD(8Ω,1kHz)
- 0.02%
- SN Ratio
- 103dB over
- Damping factor(100Hz 8Ω)
- 250 over
- Voltage Gain
- 40±2dB
- Channel Separation(20Hz～1000Hz 8Ω)
- 85dB over
- Input Impedance
- 20kΩ(balance)
- Audio Input Connectors
- XLR type×2CH
- Output Connectors
- Neutrik SpeakON® NL4MP(1+/1-) Screw type(+/-)
- HPF Switch
- 50Hz/PASS
- Ground Switch
- GND/FLOAT
- AC Input
- 220V～240V(50/60Hz)
- Power Consumption(1/8 Output Pink noise 8Ω)
- 1900W
- Cooling Fans
- Automatic air volume control fans
- Dimensions(mm)
- 482(W)×89(H)×423(D)
- Weight
- 19.0kg
